智能无负压供水设备
[ 作者:泰姆电气    转贴自:本站原创    点击数:9587    更新时间:2009-09-02    文章录入:qingxue628 ]

概述:
  TMWF-GDJ管道静音无负压自动给水设备主要由无负压装置、稳流补偿器、管道静音泵、稳压罐及变频控制柜五部分组成 。市政管网自来水直接接入稳流补偿器,稳流补偿器水满后,无负压装置自动关闭,稳流补偿器,稳压罐压力为市政管网压力,在此基础上管道静音泵通过变频控制柜对水泵调速。通过压力传感器,感知管内参数变化并将其转换为电信量,传输给供水控制器,经过分析运算控制器再根据运算结果输出信号传送给变频器由变频器控制水泵转速,这样供水系统能够根据用户用水量的变化,随时调节水泵转速达到恒压供水。此时稳压罐充满高压水并吸收平衡因用户用水引起的压力波动,使供水更平稳。当供水Q出高峰期用水量>Q进高峰期供水量时无负压装置自动打开,稳流补偿器自来水补充高峰期间用水,高峰期过后,稳流补偿器补充满水后,自动关闭无负压装置。当用水达到低峰期时,稳压罐的压力逐步提升到一定压力值时(压力值可设定)整个供水系统进入“休眠”状态,所有水泵停止工作,由稳压罐的高压水维持系统管网供水。当用水量逐步增大时,系统会自动“唤醒”管道静音泵恒压向管网供水 。充分利用管网压力和“休眠”、“唤醒”功能实现二次供水,节电率在30-80%左右,节能效果显著。

 设备特点:
1、设备可直接连接供水管网二次供水,不破坏原供水管网压力。
2、设备充分利用管网压力和“休眠”、“唤醒”功能 、变频调速,实现二次供水,节电率在30-80%,达到理想的节能效果。
3、设备水泵效率高于多级离心泵5~20﹪,配套功率比离心泵降低一个配套功率等级,高效节能。
4、设备全密封运行,不会产生污染,安全卫生,没有动密封运行更可靠,杜绝了滴、冒漏现象。
5、设备超静音,噪声小于55dB(A),结构紧凑、占地面积小,组合灵活,适应性强,特别适合高层供水。
6、设备智能化控制,自动化程度高,全自动智能压力控制,液位检测,低水位保护(或液位自动启停)、电机超温保护、无负压装置自动开启或关闭,变频恒,压供水实现无人值守,降低管理费用,降低运行费用,是理想二次供水设备。
7、设备设计理念先进,国内首创,达到国际先进水平。

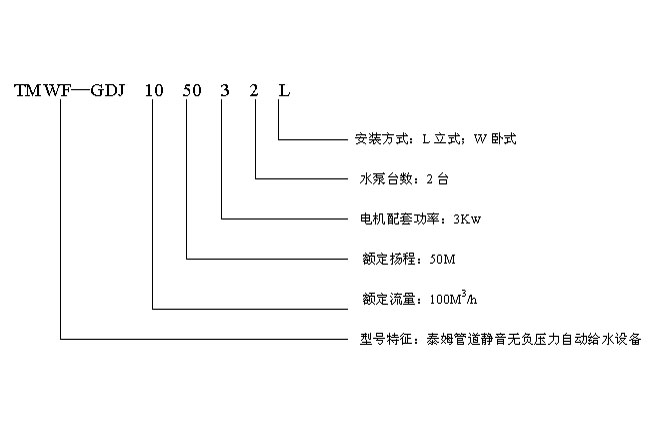

型号意义:


序号

型号
model

流量
(立方米/时)

扬程
(米)

电机功率

稳流补偿器
ФxH

稳压罐
Фxh

参考用户户数

1

TMWF-GDJ5-50-3

5

50

3

Ф700x1400

Ф600x750

20

2

TMWF-GDJ5-100-3

5

100

3

Ф700x1400

Ф600x750

20

3

TMWF-GDJ5-150-5.5

5

150

5.5

Ф700x1400

Ф600x750

20

4

TMWF-GDJ10-50-3

10

50

3

Ф700x1400

Ф600x750

50

5

TMWF-GDJ10-100-5.5

10

100

5.5

Ф700x1400

Ф600x750

50

6

TMWF-GDJ10-150-7.5

10

150

7.5

Ф700x1400

Ф600x750

50

7

TMWF-GDJ20-40-4

20

40

4

Ф800x1600

Ф600x750

80

8

TMWF-GDJ20-54-5.5

20

54

5.5

Ф800x1600

Ф600x750

80

9

TMWF-GDJ20-81-7.5

20

81

7.5

Ф800x1600

Ф600x750

80

10

TMWF-GDJ20-93-9.2

20

93

9.2

Ф800x1600

Ф600x750

80

11

TMWF-GDJ20-108-11

20

108

11

Ф800x1600

Ф600x750

80

12

TMWF-GDJ20-121-13

20

121

13

Ф800x1600

Ф600x750

80

13

TMWF-GDJ20-148-15

20

148

15

Ф800x1600

Ф600x750

80

14

TMWF-GDJ32-39-5.5

32

39

5.5

Ф800x1600

Ф600x750

160

15

TMWF-GDJ32-52-7.5

32

52

7.5

Ф800x1600

Ф600x750

160

16

TMWF-GDJ32-78-11

32

78

11

Ф800x1600

Ф600x750

160

17

TMWF-GDJ32-91-13

32

91

13

Ф800x1600

Ф600x750

160

18

TMWF-GDJ32-104-15

32

104

15

Ф800x1600

Ф600x750

160

19

TMWF-GDJ40-39-7.5

40

39

7.5

Ф900x1800

Ф600x750

200

20

TMWF-GDJ40-59-11

50

59

11

Ф900x1800

Ф600x750

200

21

TMWF-GDJ40-78-15

40

78

15

Ф900x1800

Ф600x750

200

22

TMWF-GDJ40-98-18.5

40

98

18.5

Ф900x1800

Ф600x750

200

23

TMWF-GDJ40-117-22

40

117

22

Ф900x1800

Ф600x750

200

24

TMWF-GDJ40-137-25

40

137

25

Ф900x1800

Ф600x750

200

25

TMWF-GDJ40-156-30

40

156

30

Ф900x1800

Ф600x750

200

26

TMWF-GDJ50-39-9.2

50

39

9.2

Ф1000x2000

Ф800x2000

280

27

TMWF-GDJ50-52-11

50

52

11

Ф1000x2000

Ф800x2000

280

28

TMWF-GDJ50-65-15

50

65

15

Ф1000x2000

Ф800x2000

280

29

TMWF-GDJ50-78-18.5

50

78

18.5

Ф1000x2000

Ф800x2000

280

30

TMWF-GDJ50-91-22

50

91

22

Ф1000x2000

Ф800x2000

280

31

TMWF-GDJ63-32-9.2

63

32

9.2

Ф1000x2000

Ф800x2000

350

32

TMWF-GDJ63-48-13

63

48

13

Ф1000x2000

Ф800x2000

350

33

TMWF-GDJ63-64-18.5

93

64

18.5

Ф1000x2000

Ф800x2000

350

34

TMWF-GDJ63-80-22

63

80

22

Ф1000x2000

Ф800x2000

350

35

TMWF-GDJ63-96-25

63

96

25

Ф1000x2000

Ф800x2000

350

36

TMWF-GDJ63-112-30

63

112

30

Ф1000x2000

Ф800x2000

350

37

TMWF-GDJ80-38-13

80

38

13

Ф1200x2400

Ф800x2000

480

38

TMWF-GDJ80-57-18.5

80

57

18.5

Ф1200x2400

Ф800x2000

480

39

TMWF-GDJ80-76-25

80

76

25

Ф1200x2400

Ф800x2000

480

40

TMWF-GDJ80-95-37

80

95

37

Ф1200x2400

Ф800x2000

480

41

TMWF-GDJ80-114-37

80

114

37

Ф1200x2400

Ф800x2000

480

42

TMWF-GDJ80-133-45

80

133

45

Ф1200x2400

Ф800x2000

480

注:表中稳流补偿器尺寸为参考尺寸,具体可根据供水、用水量变化情况和安装空间确定,也可以选用封闭水箱组成无负压供水系统。
容积计算公式: V=Q出-Q进)t
Q
出高峰期用水量m3/h
Q
进高峰期供水量m3/h
t
高峰期持续时间h



序号

型号

设备外型尺寸(mm

设备基础尺寸(mm

L

W

H

a

b

1

TMWF-GDJ5-50-3

3230

1400

1700

620

800

2

TMWF-GDJ5-100-3

3620

1400

1700

620

800

3

TMWF-GDJ5-150-5.5

4030

1400

1700

620

800

4

TMWF-GDJ10-50-3

3230

1400

1700

620

800

5

TMWF-GDJ10-100-5.5

3670

1400

1700

620

800

6

TMWF-GDJ10-150-7.5

4100

1400

1700

620

800

7

TMWF-GDJ20-40-4

3230

1600

1800

680

900

8

TMWF-GDJ20-54-5.5

3310

1600

1800

680

900

9

TMWF-GDJ20-81-7.5

3450

1600

1800

680

900

10

TMWF-GDJ20-93-9.2

3550

1600

1800

680

900

11

TMWF-GDJ20-108-11

3630

1600

1800

680

900

12

TMWF-GDJ20-121-13

4050

1600

1800

680

900

13

TMWF-GDJ20-148-15

4170

1600

1800

680

900

14

TMWF-GDJ32-39-5.5

3290

1600

1800

680

900

15

TMWF-GDJ32-52-7.5

3450

1600

1800

680

900

16

TMWF-GDJ32-78-11

3950

1600

1800

680

900

17

TMWF-GDJ32-91-13

4050

1600

1800

680

900

18

TMWF-GDJ32-104-15

4250

1600

1800

680

900

19

TMWF-GDJ40-39-7.5

3300

1800

1900

760

1200

20

TMWF-GDJ40-59-11

3440

1800

1900

760

1200

21

TMWF-GDJ40-78-15

3640

1800

1900

760

1200

22

TMWF-GDJ40-98-18.5

3950

1800

1900

760

1200

23

TMWF-GDJ40-117-22

4180

1800

1900

760

1200

24

TMWF-GDJ40-137-25

4360

1800

1900

760

1200

25

TMWF-GDJ40-156-30

4580

1800

1900

760

1200

26

TMWF-GDJ50-39-9.2

3730

2000

2000

840

1400

27

TMWF-GDJ50-52-11

3880

2000

2000

840

1400

28

TMWF-GDJ50-65-15

4080

2000

2000

840

1400

29

TMWF-GDJ50-78-18.5

4400

2000

2000

840

1400

30

TMWF-GDJ50-91-22

4630

2000

2000

840

1400

31

TMWF-GDJ63-32-9.2

3570

2200

2100

920

1600

32

TMWF-GDJ63-48-13

3770

2200

2100

920

1600

33

TMWF-GDJ63-64-18.5

3970

2200

2100

920

1600

34

TMWF-GDJ63-80-22

4370

2200

2100

920

1600

35

TMWF-GDJ63-96-25

4550

2200

2100

920

1600

36

TMWF-GDJ63-112-30

4750

2200

2100

920

1600

37

TMWF-GDJ80-38-13

3660

2400

2200

1000

1800

38

TMWF-GDJ80-57-18.5

3880

2400

2200

1000

1800

39

TMWF-GDJ80-76-25

4300

2400

2200

1000

1800

40

TMWF-GDJ80-95-37

4620

2400

2200

1000

1800

41

TMWF-GDJ80-114-37

4780

2400

2200

1000

1800

42

TMWF-GDJ80-133-45

5000

2400

2200

1000

1800

注:表中水泵为一用一备。





序号

型号

设备外型尺寸(mm

设备基础尺寸(mm

L

W

H

a

b

c

1

TMWF-GDJ5-50-3

1500

2400

2530

1400

800

1/2a

2

TMWF-GDJ5-100-3

1500

2400

2940

1400

800

1/2a

3

TMWF-GDJ5-150-5.5

1500

2400

3320

1400

800

1/2a

4

TMWF-GDJ10-50-3

1500

2400

2530

1400

800

1/2a

5

TMWF-GDJ10-100-5.5

1500

2400

2970

1400

800

1/2a

6

TMWF-GDJ10-150-7.5

1500

2400

3390

1400

800

1/2a

7

TMWF-GDJ20-40-4

1600

2600

2380

1500

900

1/2a

8

TMWF-GDJ20-54-5.5

1600

2600

2460

1500

900

1/2a

9

TMWF-GDJ20-81-7.5

1600

2600

2600

1500

900

1/2a

10

TMWF-GDJ20-93-9.2

1600

2600

2700

1500

900

1/2a

11

TMWF-GDJ20-108-11

1600

2600

2770

1500

900

1/2a

12

TMWF-GDJ20-121-13

1600

2600

3150

1500

900

1/2a

13

TMWF-GDJ20-148-15

1600

2600

3320

1500

900

1/2a

14

TMWF-GDJ32-39-5.5

1600

2600

2450

1500

900

1/2a

15

TMWF-GDJ32-52-7.5

1600

2600

2600

1500

900

1/2a

16

TMWF-GDJ32-78-11

1600

2600

3050

1500

900

1/2a

17

TMWF-GDJ32-91-13

1600

2600

3200

1500

900

1/2a

18

TMWF-GDJ32-104-15

1600

2600

3350

1500

900

1/2a

19

TMWF-GDJ40-39-7.5

1700

2800

2230

1600

1200

1/2a

20

TMWF-GDJ40-59-11

1700

2800

2450

1600

1200

1/2a

21

TMWF-GDJ40-78-15

1700

2800

2630

1600

1200

1/2a

22

TMWF-GDJ40-98-18.5

1700

2800

2950

1600

1200

1/2a

23

TMWF-GDJ40-117-22

1700

2800

3200

1600

1200

1/2a

24

TMWF-GDJ40-137-25

1700

2800

3350

1600

1200

1/2a

25

TMWF-GDJ40-156-30

1700

2800

3580

1600

1200

1/2a

26

TMWF-GDJ50-39-9.2

1800

3200

2580

1700

1400

1/2a

27

TMWF-GDJ50-52-11

1800

3200

2730

1700

1400

1/2a

28

TMWF-GDJ50-65-15

1800

3200

2930

1700

1400

1/2a

29

TMWF-GDJ50-78-18.5

1800

3200

3250

1700

1400

1/2a

30

TMWF-GDJ50-91-22

1800

3200

3500

1700

1400

1/2a

31

TMWF-GDJ63-32-9.2

1900

3400

2350

1800

1600

1/2a

32

TMWF-GDJ63-48-13

1900

3400

2550

1800

1600

1/2a

33

TMWF-GDJ63-64-18.5

1900

3400

2730

1800

1600

1/2a

34

TMWF-GDJ63-80-22

1900

3400

3150

1800

1600

1/2a

35

TMWF-GDJ63-96-25

1900

3400

3300

1800

1600

1/2a

36

TMWF-GDJ63-112-30

1900

3400

3500

1800

1600

1/2a

37

TMWF-GDJ80-38-13

2000

3600

2360

1900

1800

1/2a

38

TMWF-GDJ80-57-18.5

2000

3600

2580

1900

1800

1/2a

39

TMWF-GDJ80-76-25

2000

3600

3000

1900

1800

1/2a

40

TMWF-GDJ80-95-37

2000

3600

3320

1900

1800

1/2a

41

TMWF-GDJ80-114-37

2000

3600

3480

1900

1800

1/2a

42

TMWF-GDJ80-133-45

2000

3600

3700

1900

1800

1/2a

注:表中水泵为一用一备。若设备高度超过安装位置高度空间时,建议采用卧式安装方式。
